Technical Specifications
Method: Peak-peak detection
Measurement range: 30-300 bpm; ± 1 bpm
Leads: 6/12-lead synchronous acquisition and analysis
Sensitivity: 2.5, 5, 10, 20 mm/Mv; ± 5%
Input impedance: =50MO (10Hz)
Sampling rate: 2000 samples/sec
Modes: Pre-sampling, real-time sampling, periodic sampling, triggered sampling
CMRR: =100dB (AC filter on)
Frequency response: 0.05Hz-150Hz+0.4dB(-3.0dB), 10Hz
Time constant: =3.2s
Filter: AC filter 50Hz, 60Hz, Off
EMG (Electromyography) filter: 25Hz, 35Hz, 45Hz, Off
ADS (Anti-Drift System) filter: 0.05Hz, 0.32Hz, 0.67Hz
Lowpass filter: 75Hz, 100Hz, 150Hz, Off
Speed: 5, 6.25, 10, 12.5, 25, 50 mm/s; ±3%
Power supply: Built-in rechargeable lithium-ion battery, 3.8V 6000mAh
Charging time: 8 hours
Display: 4.46" colour LCD touchscreen, 480x854 pixels resolution
Size - weight: 134×74×17 mm - 250 g (including battery)
Standard accessories
1 ECG lead wire
Disposable adult ECG electrodes (2 sets of 10 pcs)
Rechargeable lithium-ion battery
Multilingual manual GB, IT, on request FR, ES, PT, DE, PL, GR, RU
U-Disk (type C & USB port)
USB cable

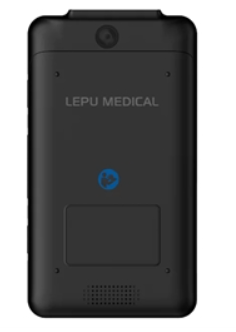

PCECG-500 POCKET ECG MONITOR

Name: PCECG-500 POCKET ECG MONITOR
Brand: LEPU MEDICAL
SKU: 33236

SKU: 33236

€1,584.00

Quantity

PCECG-500 POCKET ECG MONITOR - 6/12 leads

Portable, lightweight and easy to use ECG monitor. It provides collection, analysis, storage and transmission of 12-lead ECG information, which in combination with the Glasgow algorithm, ensures complete and immediate analysis. Automatic pacing detection and marking.

- Glasgow algorithm: provides an automatic analysis of the acquired ECG waveforms and output measurement values and diagnostic results
- Remote reporting and data transfer via E-mail and Wi-Fi transmission
- Connection to external printer via Wi-Fi
- HD camera
- More than 14 hours continuous working time
- 4.46” LCD colour touch screen
- Automatic and R-R mode

Easy to use, light and portable. It only weighs 250 g, about the size of a smartphone.

6/12 lead waveform supports synchronous acquisition and display of 6/12 lead waveform, as well as heart rate detection and indication of poor electrode contact.
Customers may request a return or exchange within 7 business days of receiving the product, in case of any technical defect or discrepancy with the order. To be eligible for a return:
• The item must be unused, in its original condition, and in its original packagin• g.
If the return is due to a product fault or our error, return shipping costs will be covered by us. Otherwise, return shipping is the buyer’s responsibilit• y.
Please contact our support team by email or phone before returning any items.
• Delivery time: Estimated between 2 to 4 business weeks after order confirmation and prepayment (subject to stock and destinatio• n).
Shipping method: Via certified international freight carriers (air or sea freigh• t).
Delivery terms: Available under EXW or DAP Incoterms, depending on agreement. Local delivery services can be arranged at additional co• st.
All items are fully tested and professionally packaged before dispatch to ensure safe and secure transportati
